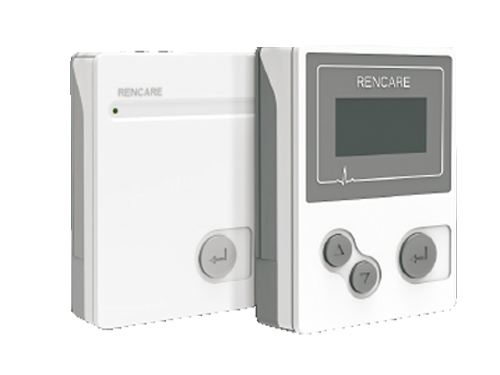

Holter ECG

i3&i3plus

Highlights:

  •  Compact and portable design
  •  3 Channel ECG recorder
  •  Sampling rate up to 1024Hz/bit
  •  Up to 96 hours 12-channel ECG recording or 7 days 3-Channel ECG recording with one AAA alkaline battery
  •  Algorithm tested by MIT and AHA database with accuracy up to 99.9%
  •  Real-time detection and display of pacemaker pulse
  •  Support Event Mark


Specification:


  •  Weight: 50g±5g (without battery)
  •  Dimension: 70*55*16 (±2mm)
  •  Storage: 8G micro SD card
  •  Battery: 1* AAA alkaline battery
  •  Display: 1.3 inches OLED screen,128*64 dot matrix
  •  Recording time:1~7 days
  •  Data transfer: Hi-Speed USB2.0, SD card-reader
  •  Regulatory compliance: CE Marked, ISO 13485 Certificated


Analysis software:

  • E-Registration
  • Pacemaker detection
  • Atrial fibrillation and flutter analysis
  • Trend analysis
  • Event analysis
  • Event mark record
  • Page Scan analysis
  • ST segment analysis
  • Template edit and analysis
  • QT dispersion
  • Heart rate variability analysis
  • Different scatter plot analysis


Advanced Function:

  • Heart-rate turbulence (HRT) analysis
  • Obstructive sleep apnea(OSA) analysis
  • Vectorcardiogram (VCG) analysis
  • T wave alternation (TWA) analysis
  • Late Potentials(SAECG) analysis
  • FCG analysis
