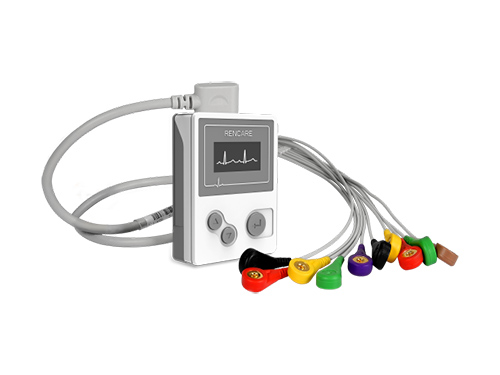

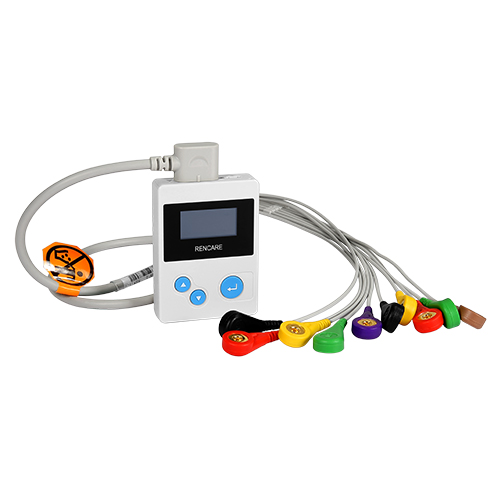

i12plus

Highlights：

² Compact and portable design

² Support 3/12 -channel ECG recording

² Sampling rate up to 1024Hz/bit

² Up to 96 hours 12-channel ECG recording or 7 days 3-Channel ECG recording with one AAA alkaline battery

² Algorithm tested by MIT and AHA database with accuracy up to 99.9%

² Real-time detection and display of pacemaker pulse

² Support Event Mark

Specification:

² Weight: 50g±5g (without battery)

² Dimension: 70*55*16 (±2mm）

² Storage: 8G micro SD card

² Battery: 1* AAA alkaline battery

² Display: 1.3 inches OLED screen,128*64 dot matrix

² Recording time:1~7 days

² Data transfer: Hi-Speed USB2.0, SD card-reader

² Regulatory compliance: CE Marked, ISO 13485 Certificated

Analysis software:

² E-Registration

² Pacemaker detection

² Atrial fibrillation and flutter analysis

² Trend analysis

² Event analysis

² Event mark record

² Page Scan analysis

² ST segment analysis

² Template edit and analysis

² QT dispersion

² Heart rate variability analysis

² Different scatter plot analysis

Advanced Function:

² Heart-rate turbulence (HRT) analysis

² Obstructive sleep apnea(OSA) analysis

² Vectorcardiogram (VCG) analysis

² T wave alternation (TWA) analysis

² Late Potentials(SAECG) analysis

² FCG analysis
